Brief Introduction,

Square Duct Forming auto duct line 5 adopts modular Linear design, with several integrated flexible workstations. Total length of the line is about 18mtrs.

Basic Equipments,

1. Electric uncoiler(two sets) driven by independent frequency controlled motor.

2. Multi-functional machine with capability of levelling,grooving,angle shearing and plate shearing

3. Multi-functional Pittsburgh machine

4. Servo-controlled material transporting table

5. Dual TDF flange forming machine

6. Hydraulic press brake

7. Computer controlling system and softwares.

8. Electric box

Characteristics,

1. Optimized linear structure makes the whole line beautiful in appearance and fast in production

2. 11 rollers are equipped for levelling to make sure plate gets even.

3. This machine is a material-saving facility with only less than 20mm wasted plates per roll.

4. Highly advanced servo system controls the whole production line very well so the products produced are perfect in appearance and precise in size.

5. One man is capable to handle the whole line

6. Workpieces counting system to count for one-day and accumulated quantities.

China supplier air duct making machine HAVC ducting auto duct line 5

Product Description

Auto duct line 5 is a most cost efficient full auto duct forming line with the duct formed automatically from decoiling to a formed squared duct!
Every step could be controlled by putting parameters into Mitsubishi PLC screen.
Having an auto duct line 5 is a magnificent sign of scaled HVAC duct factory in the whole world!
Preda Machine providesthe fastest, most reliable and cost saving Automated Duct Systems Available inoperation in China and worldwide!
Our auto duct line 5 can manage coil to duct "L" sections averaging every 15seconds and a full wrap duct every 30 seconds.
The highest quality, most productive &cost efficient coil line (duct manufacturing) machines nowadays.
It adopts modular Linear design, with several integrated flexible workstations. Total length of the line is about 18mtrs.

Main Import Configuration:

1) MITSUBISHI HMI Display And PLC;
2) MITSUBISHI Frequency Converter;
3 )Japan NEMICON Inverter;
4 )Taiwan Hydromax Pump;
5) Taiwan High Temperature Resistant Tubing.

Basic Configuration:

1. Two electric coil cradles, 4 material trays (5-7t each roll);
2. One rack;
3. One host (line 2 host);
4. One mechanical arm clutching, locating and transferring platform;
5. One displacement type locking machine;
6. One duplex TDF flange forming machine;
7. One duplex angle steel flange forming machine;
8. One servo feeding platform;
9. One hydraulic folding machine;
10. One set of computer controlling system.

FAQ

1. How to get a accurate quotation from Preda Machine?
Provide the machine name you want, the specifications you need and the quantity of machine, we shall quote accordingly!

2. What's the shipping cost from China to your country?
Please kindly tell us your nearest port to your place. We have reliable shipping forwarder to insure cheap, safe, convenient and timely delivery via sea.

3. Payment terms, MOQ, warranty, FOB.
Payment terms: 20% TT paid in advance, the balance of 80% before the shipment.
Minimum order quantity: 1 set of any machine of Preda Machine.
Delivery time : 5days after order confirmation. As a real manufacturer, we normally stock our machine in at least 5-10 sets including auto duct line 5, auto duct line 3, auto duct line 2!
And at least 20 sets each for TDF flange forming machine, Pittsburgh lock former, TDF folding machine, Pneumatic folder and etc...

Shipping terms : FOB, CFR, CIF and etc.. according to your requirements.
Warranty:24 months after our machines arriving at you.

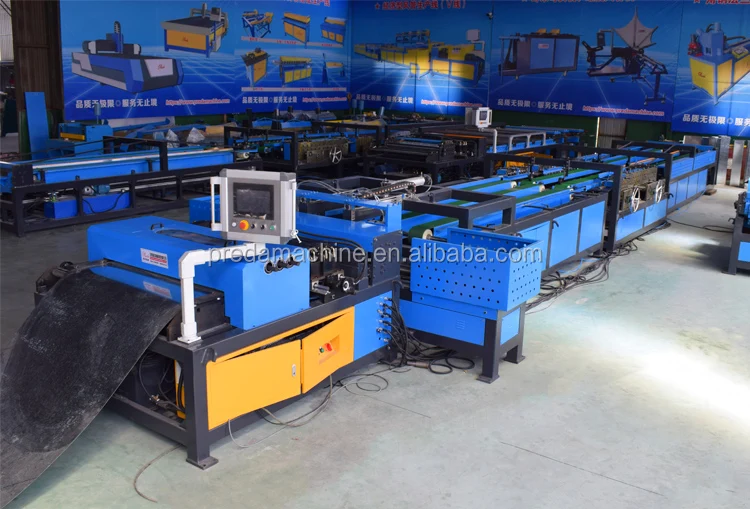

Old version auto duct production line 5 photos before Year 2015...
